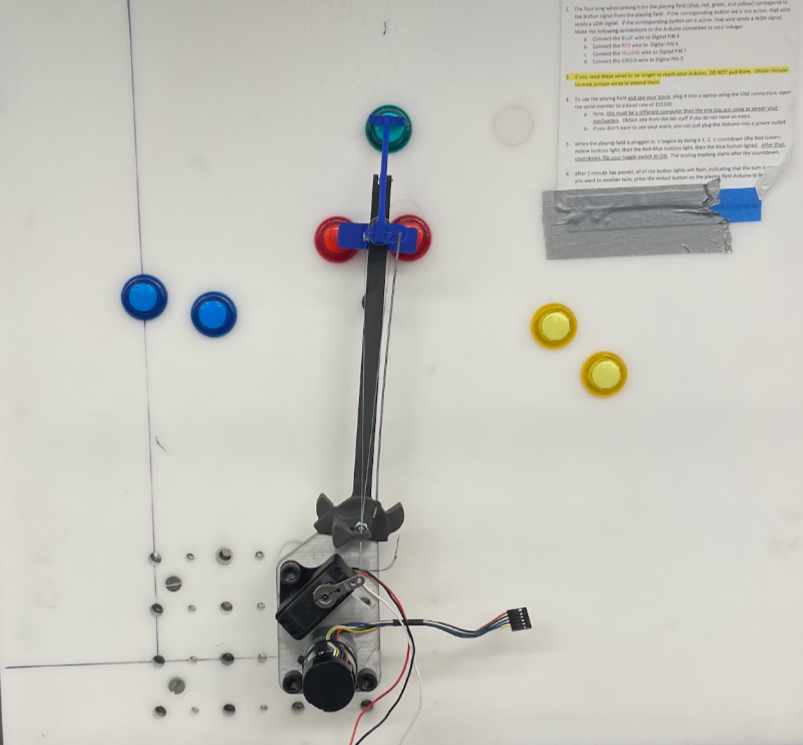

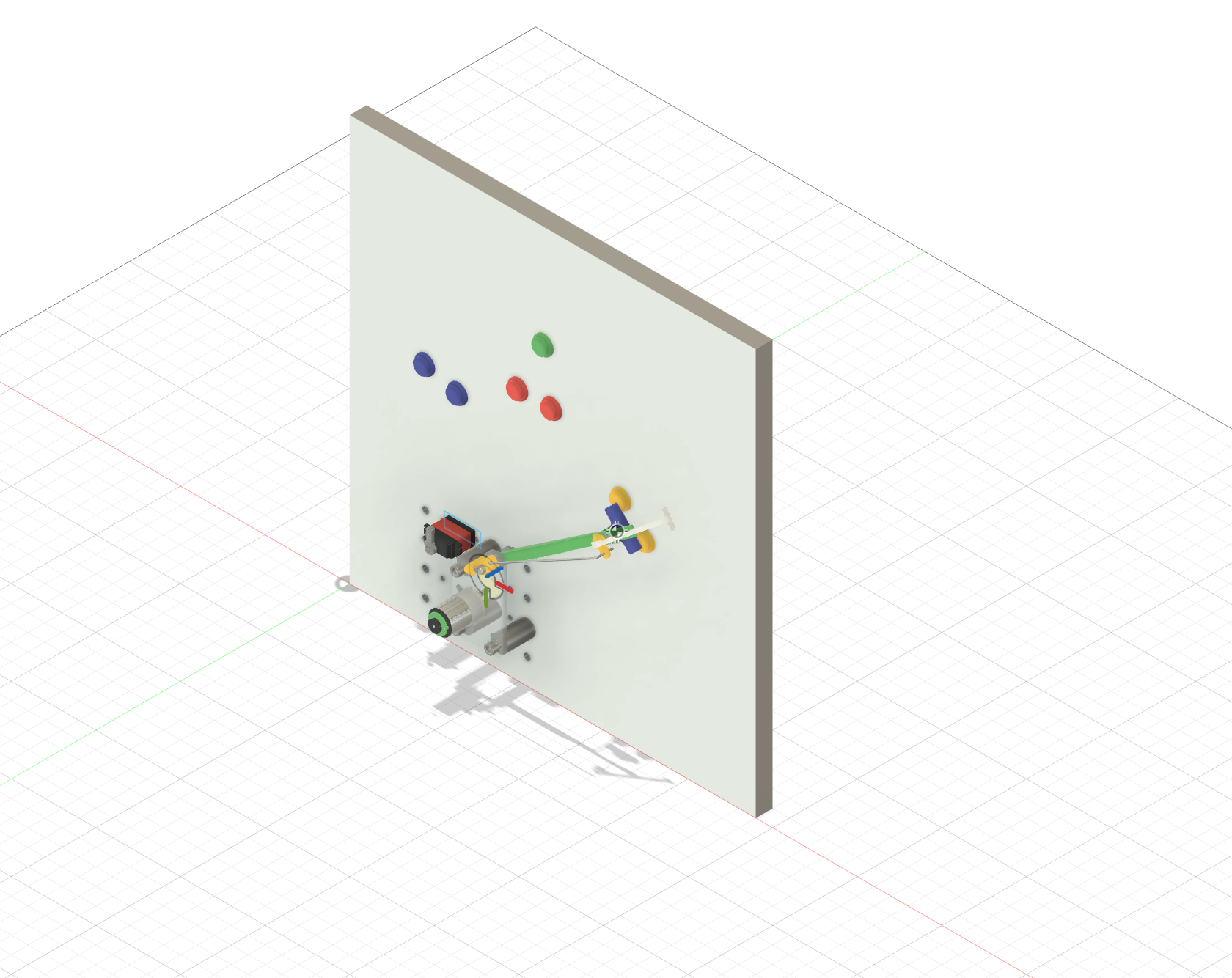

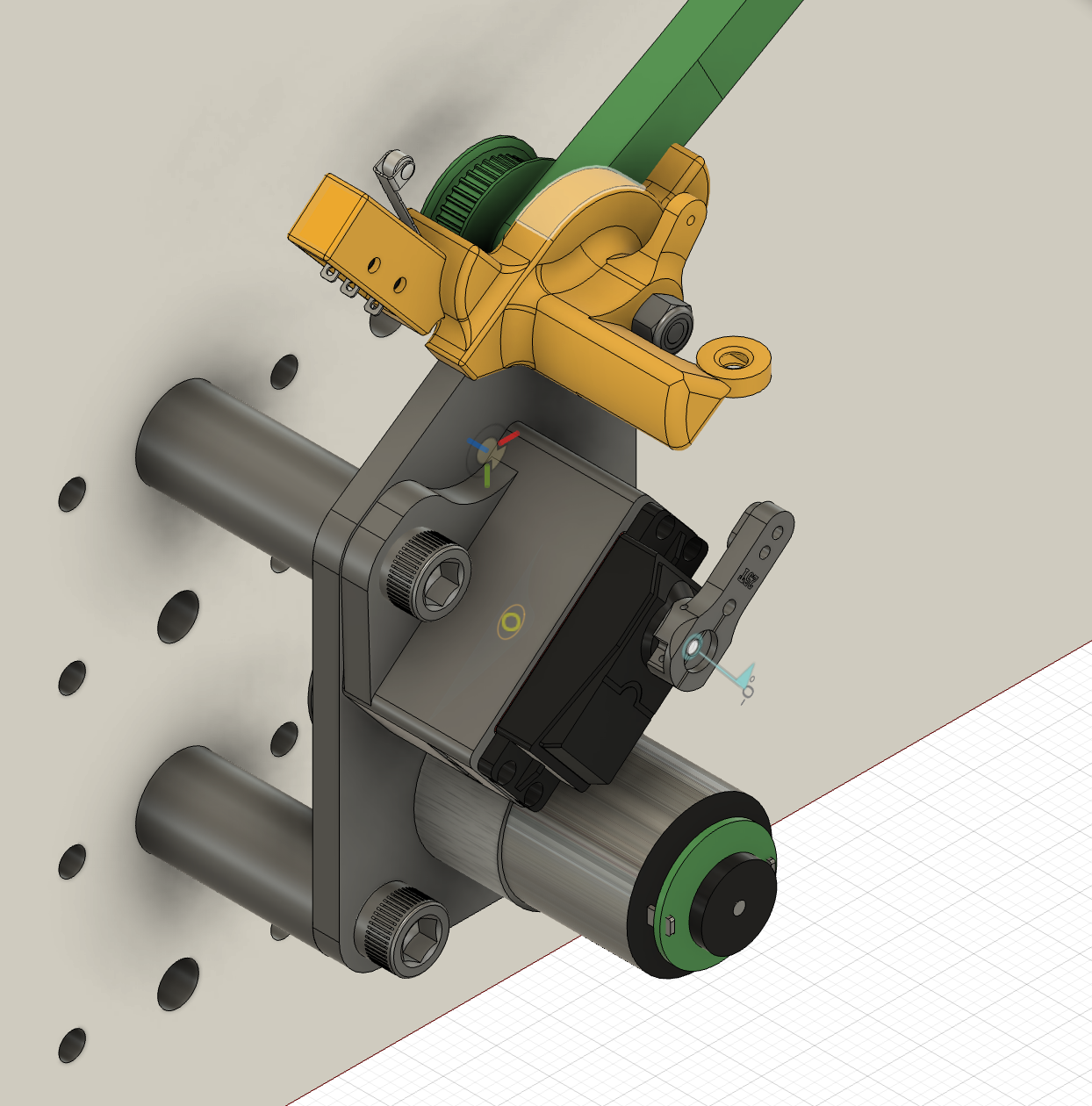

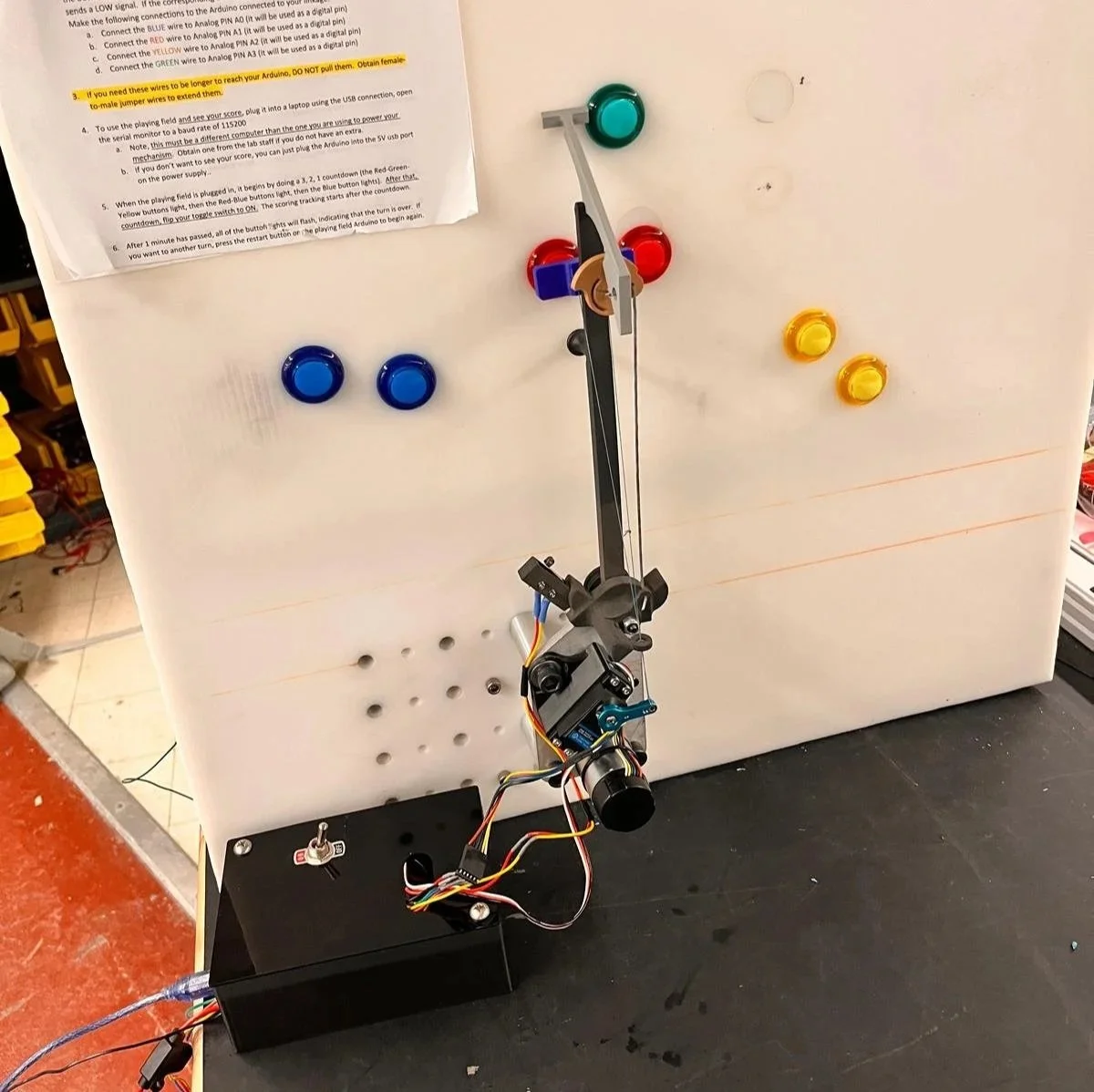

The Arcade Style Button Pusher GameDesigned and built an automated linkage system to press arcade buttons in rapid sequence The Record Breaking Performance Video Block Double-click here to add a video by URL or embed code. Learn more The Criteria: Performance (# of correct buttons pressed in a one minute span)Volume minimizationCraftsmanship The Challenges:Achieve predictable, FAST motion while preventing absolute failureHyper-optimize for maximal performanceThe Outcome:Scored 309 points on game-day (all-time record) Volume minimized to less than 230in^3 Project Acheivements Assembly CAD Model, Fusion360 Assembled Linkage System Unique Design Only group to implement non-traditional four-bar linkageActuated by just a servo motor and DC motor, transmission through a timing-belt system→ MOI reduced 2.5x → High speed actuation→ Adjustable transmission Final Design Assembled Linkage with Electronics CraftsmanshipManufacturing using the CNC lathes and mills for metal components 3D printing prototypes and POCs→ Precision machining + manufacturing techniques → Maintains optimal performance→ SLS Printing! (main linkage)
